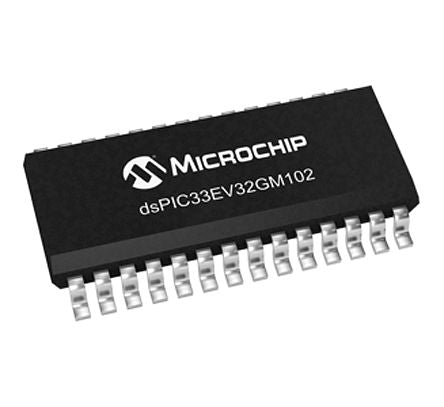

dsPIC33EV32GM102-I/SO Microchip, 16bit DSP 25MHz 32 kB Flash 28-Pin SOIC [DSPIC33EV32GM102-I/SO]; 178-4871
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 25MHz |
| Device Million Instructions per Second | 70MIPS |
| Data Bus Width | 16bit |
| RAM Size | 4 kB |
| Instruction Set Architecture | C Compiler, DSP, MCU, Modified Harvard |
| Program Memory Size | 32 kB |
| Program Memory Type | Flash |
| Numeric and Arithmetic Format | ALU, MAC |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 4.5 → 5.5 V |
| Number of UART Channels | 2 |
| Number of Timers | 2 (32-bit), 5 (16-bit) |
| ADC Channels | 11 |
| Number of CAN Channels | 1 |
| PWM Channels | 6 |
| Number of I2C Channels | 1 |
| Timers | 2 x 32 bit, 5 x 16 bit |
| Height | 2.05mm |
| Timer Resolution | 16 bit, 32 bit |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 10 bit, 12 bit |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| ADCs | 1 (11 x 10/12 bit) |
| Number of PWM Units | 1 |
| Number of ADC Units | 1 |
| PWM Resolution | 16bit |
| Number of SPI Channels | 2 |
| Dimensions | 17.9 x 7.5 x 2.05mm |
| Length | 17.9mm |
| Width | 7.5mm |
| Minimum Operating Temperature | -40 °C |
