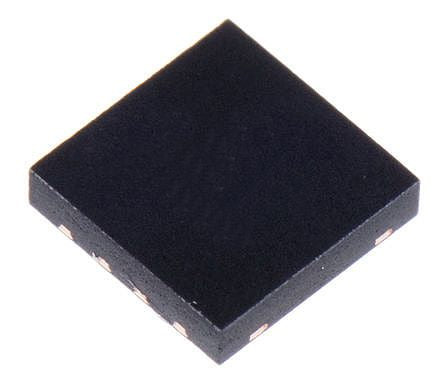

Microchip PIC12LF1501-E/MC, 8bit PIC Microcontroller, 20MHz, 1024 words Flash, 8-Pin DFN [PIC12LF1501-E/MC]; 159-7423
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC12F |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 1024 words |
| Maximum Frequency | 20MHz |
| RAM Size | 64 kB |
| Number of PWM Units | 4 |
| ADC Channels | 4 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Program Memory Type | Flash |
| Number of Timers | 3 |
| Pulse Width Modulation | 4 x 10 bit |
| Dimensions | 2 x 3 x 0.95mm |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Width | 3mm |
| Height | 0.95mm |
| ADC Resolution | 10bit |
| Length | 2mm |
| Minimum Operating Temperature | -40 °C |
| ADCs | 1(4 x 10 bit) |
| Instruction Set Architecture | RISC |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 1 |
| Timer Resolution | 8 bit, 16 bit |
| PWM Resolution | 10bit |
