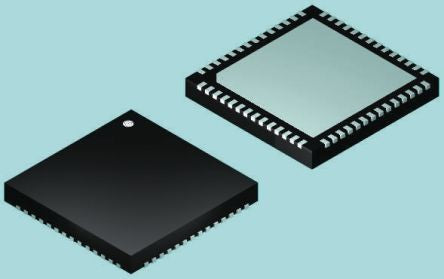

Microchip PIC18F46J50-I/ML, 8bit PIC Microcontroller, 48MHz, 64 kB Flash, 44-Pin QFN [PIC18F46J50-I/ML]; 145-8963
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 3.776 kB |
| USB Channels | 1 x Device |
| Number of PWM Units | 2 |
| ADC Channels | 13 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.15 → 3.6 V |
| Number of I2C Channels | 2 |
| Number of Timers | 5 |
| Timer Resolution | 8 bit, 16 bit |
| Height | 0.95mm |
| Width | 8mm |
| Number of USART Channels | 2 |
| Timers | 2 x 8 bit, 3 x 16 bit |
| Dimensions | 8 x 8 x 0.95mm |
| Pulse Width Modulation | 2(16 bit) (ECCP) |
| Program Memory Type | Flash |
| Length | 8mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| ADCs | 13 x 10 bit |
