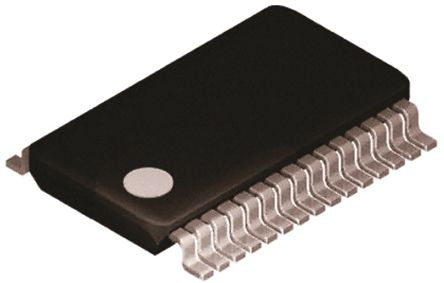

Renesas Electronics R5F100ADASP#V0, 16bit RL78 Microcontroller, 32MHz, 48 kB Flash, 30-Pin LSSOP [R5F100ADASP#V0]; 829-1106
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RL78/G13 |
| Package Type | LSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 30 |
| Device Core | RL78 |
| Data Bus Width | 16bit |
| Program Memory Size | 48 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 3 kB |
| ADC Channels | 8 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.6 → 5.5 V |
| Number of Timers | 1 |
| Number of I2C Channels | 4 |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 3 |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Dimensions | 6.65 x 6.1 x 1.2mm |
| Timers | 8 x 16 bit |
| Width | 6.1mm |
| Length | 6.65mm |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 8 bit, 10 bit |
| Number of LIN Channels | 1 |
| Height | 1.2mm |
| Timer Resolution | 16bit |
| ADCs | 1 (8 x 10 bit/8 x 8 bit) |
| Instruction Set Architecture | CISC |
