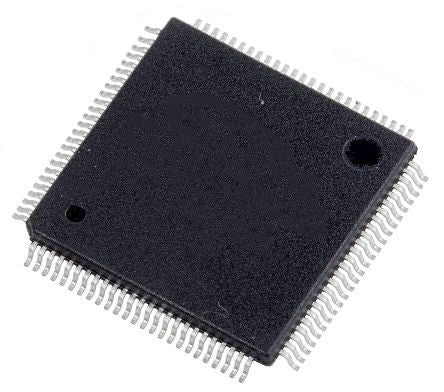

RX631 2MB, 256kB LQFP100 100MHz [R5F5631FDDFP#V0]; 192-8131
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RX631 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | RX CPU |
| Data Bus Width | 32bit |
| Program Memory Size | 2 MB |
| Maximum Frequency | 100MHz |
| RAM Size | 256 kB |
| USB Channels | 1 |
| ADC Channels | 8, 14 |
| Number of SPI Channels | 11 |
| Typical Operating Supply Voltage | 2.7 → 3.6 V |
| ADCs | 1 (14 x 12 bit), 1 (8 x 10 bit) |
| Length | 14.1mm |
| Number of UART Channels | 9 |
| Number of Timers | 4, 16 |
| Number of ADC Units | 2 |
| Number of CAN Channels | 2 |
| Instruction Set Architecture | CISC Harvard |
| ADC Resolution | 10 bit, 12 bit |
| Dimensions | 14.1 x 14.1 x 1.4mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 (16 x 16 bit), 1 (4 x 8 bit) |
| Width | 14.1mm |
| PWM Channels | 32 |
| Height | 1.4mm |
| Timer Resolution | 8 bit, 16 bit |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
