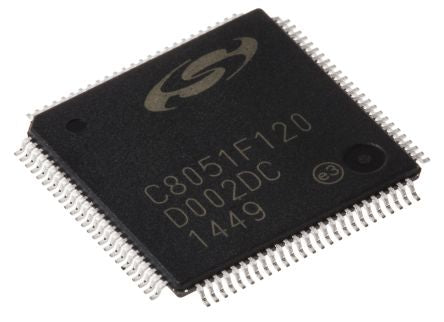

Silicon Labs C8051F120-GQ, 8bit 8051 Microcontroller, 100MHz, 128 kB Flash, 100-Pin TQFP [C8051F120-GQ]; 168-9819
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | C8051F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 8.448 kB |
| Number of PWM Units | 6 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of I2C Channels | 1 |
| Number of UART Channels | 2 |
| Number of Timers | 5 |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Program Memory Type | Flash |
| Pulse Width Modulation | 6(PWM/CCA) |
| Dimensions | 14 x 14 x 1.05mm |
| Number of ADC Units | 1 |
| Timers | 5 x 16 bit |
| Width | 14mm |
| Height | 1.05mm |
| Timer Resolution | 16bit |
| ADCs | 8 x 12 bit |
| Length | 14mm |
| Instruction Set Architecture | CISC |
| Maximum Operating Temperature | +85 °C |
