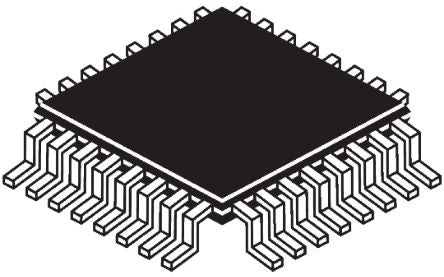

Silicon Labs C8051F387-GQ, 8bit 8051 Microcontroller, 48MHz, 32 kB Flash, 32-Pin LQFP [C8051F387-GQ]; 169-0020
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | C8051F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 2.304 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.3 V |
| Maximum Operating Temperature | +85 °C |
| Length | 7mm |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| Timers | 6 x 16 bit |
| Pulse Width Modulation | 1 (5 x 16 bit) |
| Program Memory Type | Flash |
| Width | 7mm |
| PWM Channels | 5 |
| Dimensions | 7 x 7 x 1.45mm |
| Number of I2C Channels | 2 |
| Number of Timers | 6 |
| Number of UART Channels | 2 |
| PWM Resolution | 16bit |
| Instruction Set Architecture | MCU |
| Minimum Operating Temperature | -40 °C |
