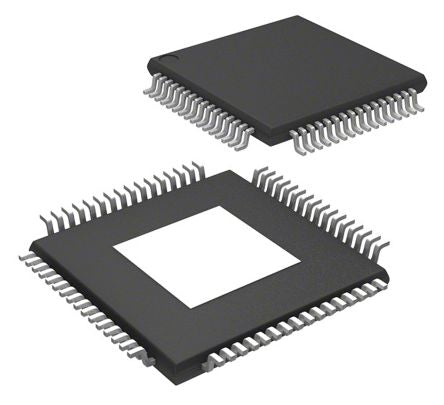

Silicon Labs EZR32WG230F256R63G-B0, 32bit ARM Cortex M4 MCU, 48MHz, 256 kB Flash, 64-Pin QFN [EZR32WG230F256R63G-B0]; 173-2765
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | EZR32WG |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 1 |
| ADC Channels | 1 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.98 → 3.8 V |
| Number of Timers | 4 |
| Number of I2C Channels | 2 |
| Program Memory Type | Flash |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Number of UART Channels | 2 |
| Number of USART Channels | 2 |
| Data Rate | 1Mbps |
| Width | 9.1mm |
| PWM Channels | 1 |
| Height | 0.9mm |
| ADCs | 1 (1 x 12 bit) |
| Length | 9.1mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 1 |
| Timers | 4 |
| Dimensions | 9.1 x 9.1 x 0.85mm |
