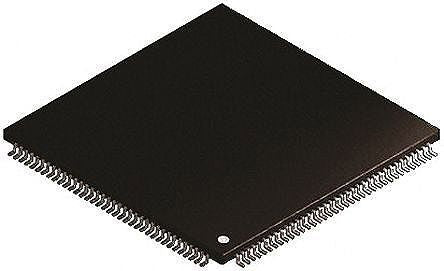

STMicroelectronics STM32F723ZET6, 32bit ARM Cortex M7 Microcontroller, 216MHz, 512 kB Flash, 144-Pin LQFP [STM32F723ZET6]; 135-8234
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M7 |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 216MHz |
| RAM Size | 256 kB |
| USB Channels | 1 |
| ADC Channels | 3 |
| Number of SPI Channels | 5 |
| Typical Operating Supply Voltage | 1.7 → 3.6 V |
| ADCs | 1(3 x 12 bit) |
| Number of I2C Channels | 3 |
| Number of Timers | 2 |
| Timers | 1(13 x 16 bit), 1(2 x 32 bit) |
| Height | 1.45mm |
| Timer Resolution | 16 bit, 32 bit |
| Minimum Operating Temperature | -40 °C |
| Width | 20.2mm |
| Number of USART Channels | 4 |
| ADC Resolution | 12bit |
| Number of UART Channels | 4 |
| Length | 20.2mm |
| Dimensions | 20.2 x 20.2 x 1.45mm |
| Number of ADC Units | 1 |
| Number of CAN Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Instruction Set Architecture | DSP |
