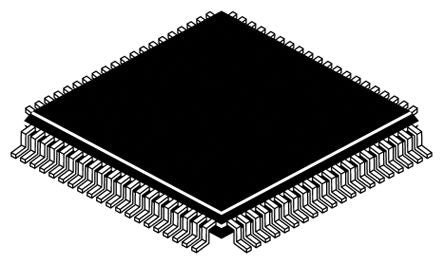

Texas Instruments TMS320F28069FPFPQ, 32bit C28x Microcontroller, 90MHz, 128 kB Flash, 80-Pin HTQFP [TMS320F28069FPFPQ]; 162-9876
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | TMS320 MCU |
| Package Type | HTQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | C28x |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 90MHz |
| RAM Size | 50 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of Timers | 3 |
| Length | 12.2mm |
| ADCs | 1 (12 x 12 bit) |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +125 °C |
| Program Memory Type | Flash |
| Timer Resolution | 32bit |
| Height | 1.05mm |
| PWM Channels | 14 |
| Instruction Set Architecture | Harvard Bus |
| ADC Resolution | 12bit |
| Dimensions | 12.2 x 12.2 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 3 x 32 bit |
| PWM Resolution | 8bit |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 1 (14 x 8 bit) |
| Width | 12.2mm |
