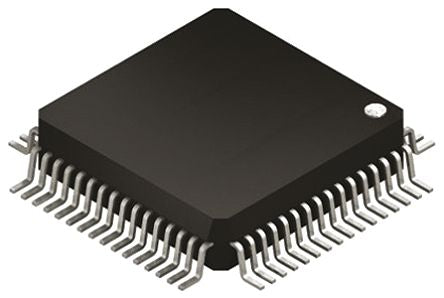

Altera 5M160ZE64C4N, CPLD MAX V Flash 128 Cells, 54 I/O, 160 Labs, 7.9ns, ISP, 64-Pin EQFP [5M160ZE64C4N]; 170-2996
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | MAX V |
| Number of Macro Cells | 128 |
| Number of User I/Os | 54 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 160 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | EQFP |
| Pin Count | 64 |
| Propagation Delay | 7.9ns |
| Individual Output Enable Control | Yes |
| Dimensions | 7 x 7 x 1.05mm |
| Height | 1.05mm |
| Length | 7mm |
| Minimum Operating Supply Voltage | 1.71 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Operating Supply Voltage | 1.89 V |
| Propagation Delay Test Condition | 10pF |
| Width | 7mm |
| Minimum Operating Temperature | 0 °C |
| Re-programmability Support | Yes |
