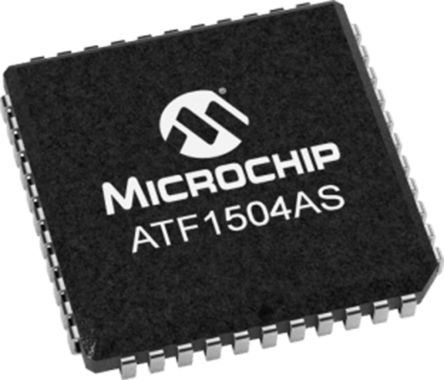

Microchip Technology ATF1504AS-10JU44, CPLD ATF1504AS EEPROM 64 Cells, 68 I/O, 64 Labs, 10ns, ISP, 44-Pin PLCC [ATF1504AS-10JU44]; 177-1497
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATF1504AS |
| Number of Macro Cells | 64 |
| Number of User I/Os | 68 |
| Memory Type | EEPROM |
| Number of Logic Blocks/Elements | 64 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Pin Count | 44 |
| Propagation Delay | 10ns |
| Individual Output Enable Control | Yes |
| Dimensions | 16.6 x 16.6 x 4.06mm |
| Height | 4.06mm |
| Length | 16.6mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Propagation Delay Test Condition | 35pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Temperature | +85 °C |
| Re-programmability Support | Yes |
| Width | 16.6mm |
| Minimum Operating Temperature | -40 °C |
