Panduit Wire Routing, Management & Protection, [ST17-075-66RD]; PAI413

Name: Panduit Wire Routing, Management & Protection, [ST17-075-66RD]; PAI413
Brand: Panduit
SKU: PAI413
Price: 35560.0 VND
Availability: InStock

Mã kho: PAI413

Mã nhà sản xuất: ST17-075-66RD

Tên nhà sản xuất: Panduit

35.560₫ - 35.560₫

35.560₫

35.560₫ - 35.560₫

35.560₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

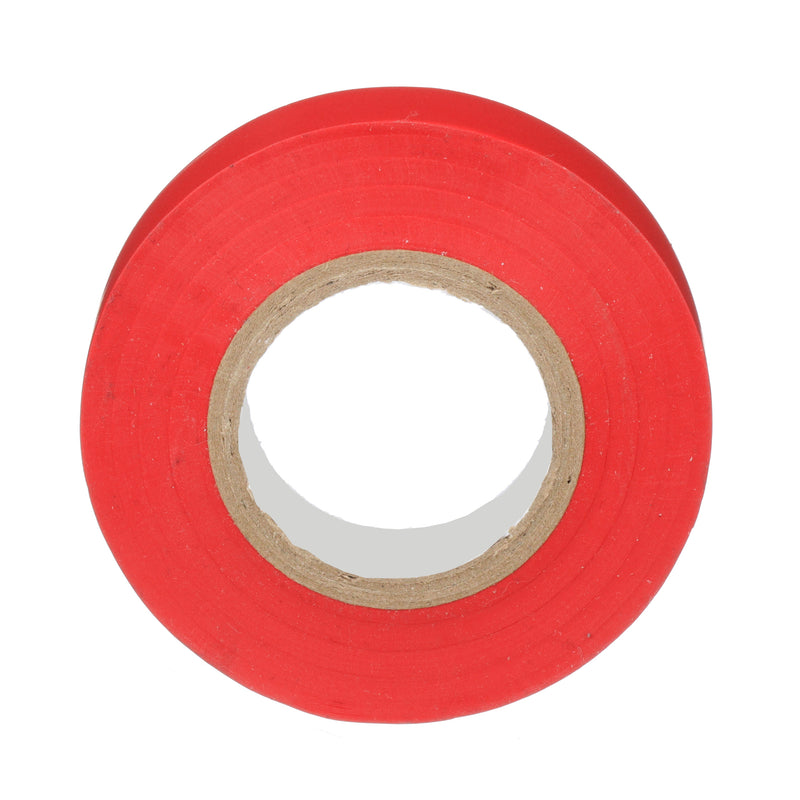

Wire Routing Management Protection / Electrical Tape / Pvc Electrical Tape: Panduit ST17-075-66RD

MÔ TẢ SẢN PHẨM

StrongHold ST17-075-66RD General Purpose PVC Electrical Tape has non-corrosive and pressure-sensitive adhesive, which eliminates the need for heat, moisture or other catalysts during application. Its high elongation provides excellent conformability properties and it is .75" x 66' x .007” in size. I

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StrongHold™
Product Type	General Purpose
Color	Red
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.007
Overall Thickness (mm)	0.18
Overall Width (In.)	0.75
Overall Width (mm)	19.05
Overall Length (ft.)	66
Overall Length (m)	20.12
Tensile Strength (N/cm)	24.72
Tensile Strength (kg/mm)	0.252
Elongation at Break (%)	200
Adhesion to Steel (N/cm)	1.97
Adhesion to Steel (oz/in)	18
Adhesion to Backing (N/cm)	1.97
Adhesion to Backing (oz/in)	18
Flammability Rating	UL 510 Flame Retardant
Maximum Operating Temperature (°C)	80
Maximum Operating Temperature (°F)	176
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Dielectric Breakdown Voltage (V)	7
Standards Met	Meets UL 510 CAS C 22.2 No 197; Meets RoHS 2002/95/EC directives
Compliance Certifications	UL Listed/CSA Certified
Environment	Indoor/Outdoor
Application	Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr)	5
Tape Style	General Purpose
Adhesive Backing Material	Rubber
