Panduit Wire Routing, Management & Protection, [ST35-075-66GR]; PAI420

Name: Panduit Wire Routing, Management & Protection, [ST35-075-66GR]; PAI420
Brand: Panduit
SKU: PAI420
Price: 159630.0 VND
Availability: InStock

Mã kho: PAI420

Mã nhà sản xuất: ST35-075-66GR

Tên nhà sản xuất: Panduit

159.630₫ - 159.630₫

159.630₫

159.630₫ - 159.630₫

159.630₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Electrical Tape / Pvc Electrical Tape: Panduit ST35-075-66GR

MÔ TẢ SẢN PHẨM

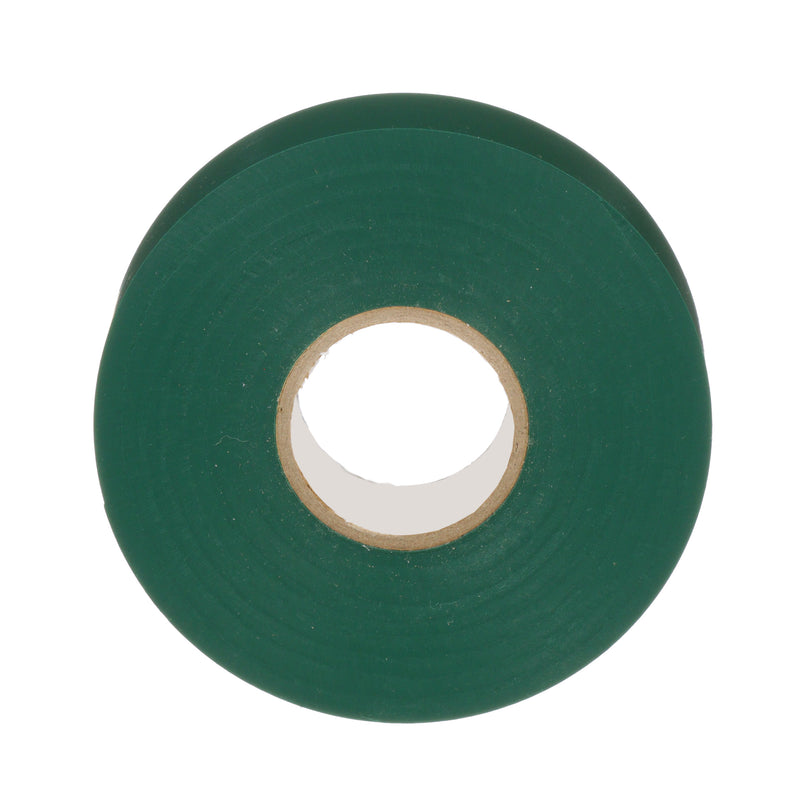

StrongHold ST35-075-66GR Professional Grade PVC Electrical Tape is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It has excellent elasticity and insulating properties and it is .75" x 66' x .007" in size. It is g

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StrongHold™
Product Type	Professional Grade
Color	Green
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.007
Overall Thickness (mm)	0.18
Overall Width (In.)	0.75
Overall Width (mm)	19
Overall Length (ft.)	66
Overall Length (m)	20
Tensile at Break (N/cm)	30
Tensile at Break (kg/mm)	0.31
Elongation at Break (%)	260
Adhesion to Steel (N/cm)	2.2
Adhesion to Steel (oz/in)	20.1
Adhesion to Backing (N/cm)	2.2
Adhesion to Backing (oz/in)	20.1
Flammability Rating	UL 510 Flame Retardant
Flagging (mm)	0
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Minimum Operating Temperature (°C)	-18
Minimum Operating Temperature (°F)	0
Dielectric Strength Standard (kV)	8
Dielectric Strength Wet (90%) (kV)	7.2
Insulation Resistance (MΩ)	1.00E+06
Standards Met	Meets ASTM D-3005, Type 1; EN 60454-3-1, Type 11; UL 510 CSA C 22.2 No 197; Meets 2000/53/EC and RoHS 2011/65/EU directives
Compliance Certifications	UL Listed/CSA Certified
Environment	Indoor/Outdoor
Application	Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr)	5
Tape Style	Professional Grade
Adhesive Backing Material	Rubber
