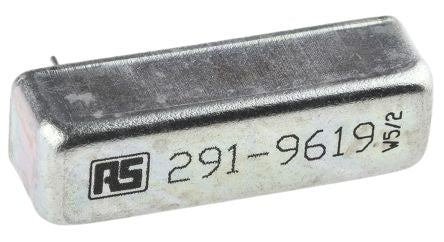

SPNO Reed Relay, 5V dc [B05-1A72-B V619]; 291-9619
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 5V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 200V ac |
| Maximum Switching Voltage DC | 200V dc |
| Coil Power | 72mW |
| Coil Resistance | 345 Ω |
| Length | 31.8mm |
| Height | 8.9mm |
| Depth | 9.4mm |
| Dimensions | 31.8 x 9.4 x 8.9mm |
| Isolation Coil To Contact | 2kV dc |
| Maximum Operating Temperature | +70°C |
| Contact Resistance | 150 mΩ |
| Operating Time Including Bounce | 0.5ms |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +70°C |
| Terminal Type | Through Hole |
| Maximum Switching Power DC | 15 W |
| Number of Poles | 1 |
