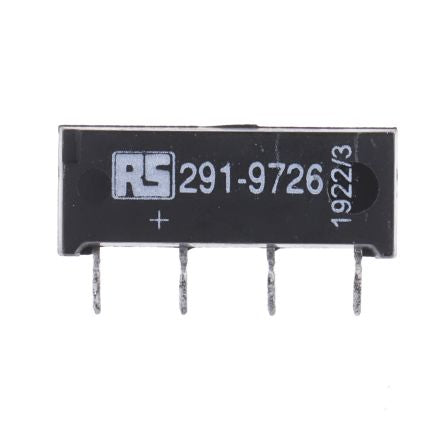

SPNO Reed Relay, 1 A, 24V dc [SIL24-1A72-BV726]; 291-9726
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.0416666666666667 |
| Maximum Switching Current DC | 0.0416666666666667 |
| Maximum Switching Voltage AC | 200V ac |
| Maximum Switching Voltage DC | 200V dc |
| Coil Power | 288mW |
| Coil Resistance | 2 kΩ |
| Length | 19.8mm |
| Height | 7.8mm |
| Depth | 5.08mm |
| Dimensions | 19.8 x 5.08 x 7.8mm |
| Isolation Coil To Contact | 1.5kV dc |
| Life | 5000000 (Electrical) cycles |
| Terminal Type | Through Hole |
| Contact Resistance | 150 (Static) mΩ, 200 (Dynamic) mΩ |
| Minimum Operating Temperature | -20°C |
| Maximum Switching Power DC | 20 W |
| Maximum Operating Temperature | +70°C |
| Operating Time Including Bounce | 0.5ms |
| Operating Temperature Range | -20 → +70°C |
| Contact Material | Rhodium |
