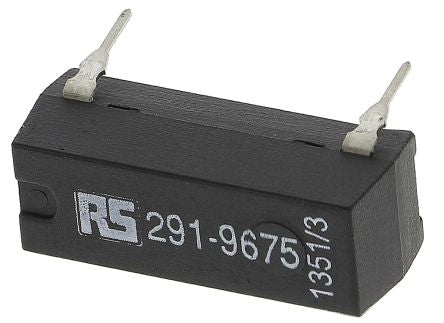

SPNO Reed Relay, 0.5 A, 5V dc; 291-9675
Mã kho: 2919675
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 5V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.5 A |
| Maximum Switching Current DC | 0.5 A |
| Maximum Switching Voltage AC | 300V |
| Maximum Switching Voltage DC | 300V dc |
| Coil Power | 125mW |
| Coil Resistance | 200 Ω |
| Length | 19.3mm |
| Height | 7.5mm |
| Depth | 7mm |
| Dimensions | 19.3 x 7 x 7.5mm |
| Isolation Coil To Contact | 2.5kV dc |
| Maximum Switching Power DC | 10 W |
| Minimum Operating Temperature | -20°C |
| Terminal Type | Through Hole |
| Operating Temperature Range | -20 → +70°C |
| Maximum Operating Temperature | +70°C |
| Standards Met | RoHS Compliant |
| Contact Resistance | 200 mΩ |
| Operating Time Including Bounce | 0.5ms |
| Contact Material | Tin Plated Copper Alloy |
