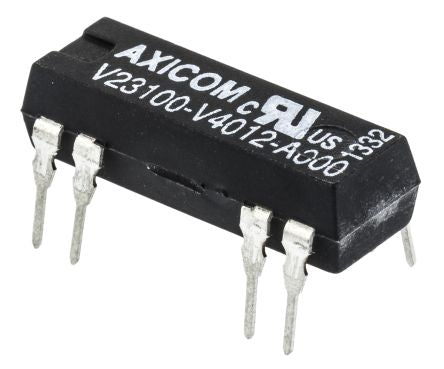

SPNO Reed Relay, 12V dc [V23100V4012A000]; 164-8424
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 12V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.0416666666666667 |
| Maximum Switching Current DC | 0.0416666666666667 |
| Maximum Switching Voltage AC | 200V ac |
| Maximum Switching Voltage DC | 200V dc |
| Coil Power | 144mW |
| Coil Resistance | 1 kΩ |
| Length | 19.3mm |
| Height | 5.7mm |
| Depth | 6.4mm |
| Dimensions | 19.3 x 6.4 x 5.7mm |
| Isolation Coil To Contact | 1.5kV rms |
| Operating Time Including Bounce | 0.75ms |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power DC | 10 W |
| Operating Temperature Range | -40 → +85°C |
| Contact Resistance | 150 mΩ |
| Contact Material | Ruthenium |
| Maximum Switching Power AC | 10 VA |
| Maximum Operating Temperature | +85°C |
| Terminal Type | Through Hole |
| Life | 50000000 (Electrical) cycles |
