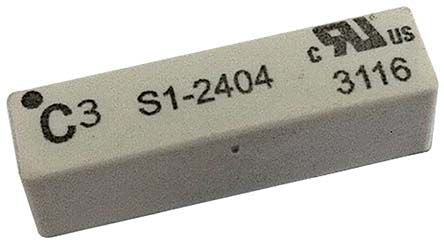

SPNO Reed Relay, 1 A, 24V dc [S1-2404/RS]; 124-5122
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.0416666666666667 |
| Maximum Switching Current DC | 0.0416666666666667 |
| Maximum Switching Voltage AC | 300V |
| Maximum Switching Voltage DC | 350V |
| Coil Resistance | 1 kΩ |
| Length | 24.1mm |
| Height | 8.1mm |
| Depth | 6.2mm |
| Dimensions | 24.1 x 6.2 x 8.1mm |
| Isolation Coil To Contact | 5kV dc |
| Contact Resistance | 100 mΩ |
| Contact Material | Rhodium |
| Special Features | Screened, Space Saving |
| Relay Switching Classification | General Purpose Relay |
| Number of Poles | 1 |
| Minimum Operating Temperature | -40°C |
| Operating Time Including Bounce | 1ms |
| Maximum Switching Power AC | 100 VA |
| Maximum Operating Temperature | +85°C |
| Terminal Type | PCB Pin |
| Operating Temperature Range | -40 → +85°C |
| Life | 1000000000 (Dry) operations |
