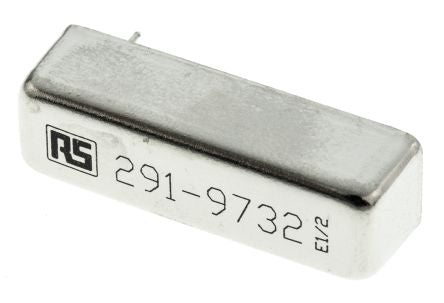

SPNO Reed Relay, 1 A, 24V dc; 291-9732
Mã kho: 2919732
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.0416666666666667 |
| Maximum Switching Current DC | 0.0416666666666667 |
| Maximum Switching Voltage AC | 200V ac |
| Maximum Switching Voltage DC | 200V dc |
| Coil Power | 73mW |
| Coil Resistance | 7.845 kΩ |
| Length | 31.8mm |
| Height | 8.9mm |
| Depth | 9.4mm |
| Dimensions | 31.8 x 9.4 x 8.9mm |
| Isolation Coil To Contact | 2kV dc |
| Maximum Operating Temperature | +70°C |
| Contact Resistance | 150 mΩ |
| Life | 100000000 cycles |
| Contact Material | Tin Plated Copper Alloy |
| Standards Met | RoHS Compliant |
| Operating Time Including Bounce | 0.5ms |
| Terminal Type | Through Hole |
| Operating Temperature Range | -20 → +70°C |
| Maximum Switching Power DC | 15 W |
| Minimum Operating Temperature | -20°C |
