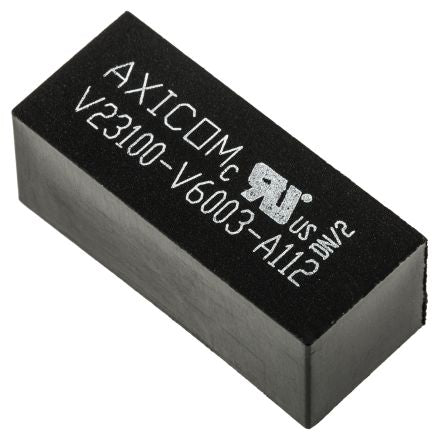

DPDT Reed Relay, 350 mA, 24V dc [V23100V6003A112]; 256-2386
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage DC | 100V dc |
| Coil Power | 149mW |
| Coil Resistance | 3.86 kΩ |
| Length | 26.2mm |
| Height | 10.5mm |
| Depth | 11mm |
| Dimensions | 26.2 x 11 x 10.5mm |
| Isolation Coil To Contact | 1.5kV rms |
| Maximum Operating Temperature | +70°C |
| Terminal Type | Through Hole |
| Operating Temperature Range | -25 → +70°C |
| Maximum Switching Power DC | 10 W |
| Operating Time Including Bounce | 0.7ms |
| Minimum Operating Temperature | -25°C |
| Contact Material | Rhodium, Ruthenium |
