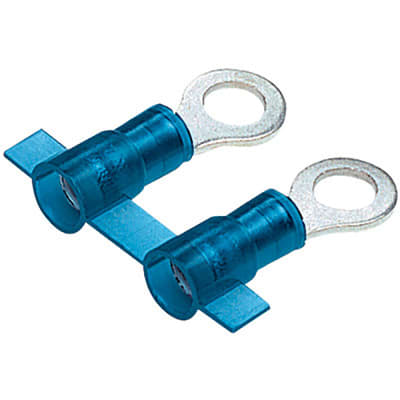

Panduit PNF14-8R-3K

Panduit Ring Terminals, [PNF14-8R-3K]; PAF874

Mã kho: PAF874
Mã nhà sản xuất: PNF14-8R-3K
Tên nhà sản xuất: Panduit
10.350₫ - 10.350₫
10.350₫
10.350₫ - 10.350₫
10.350₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PNF14-8R-3K

MÔ TẢ SẢN PHẨM

The PNF14-8R-3K Reel Smart™ Terminal is a continuously molded, nylon insulated, ring terminal with funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The metal insulation grip sleeve crimps to wire insulation, providing protection

_THÔNG SỐ KỸ THUẬT:

Minimum Operating Temperature (°C) 105
Stud Size #8
Insulation Material Nylon
Maximum Copper Conductor Size (AWG SOL) #14
Maximum Copper Conductor Size (AWG STR) #14
Maximum Wire Size (AWG) #14
Minimum Wire Size (AWG) #16
Minimum Copper Conductor Size (AWG SOL) #16
Minimum Copper Conductor Size (AWG STR) #16
Maximum Metric Conductor Size (mm²) 2.5
Minimum Metric Conductor Size (mm²) 1.5
Wire Strip Length (In.) 1/4
Wire Strip Length (mm) 6.4
Standards Met UL 486A/B, and CSA 22.2 No.65
Base Material Copper
Maximum Voltage (V) 600
Maximum Voltage (kV) 0.6
Finish/Coating Tin-Plated
Color Code Blue
Barrel Type Funnel
Flammability Rating UL94-HB
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Maximum Wire Insulation Diameter (In.) 0.162
Maximum Wire Insulation Diameter (mm) 4.11
Sub Brand Reel Smart™
Overall Length (In.) 0.87
Overall Length (mm) 22.1
Overall Width (In.) 0.31
Overall Width (mm) 7.87
Tongue Thickness (In.) 0.03
Tongue Thickness (mm) 0.8
Tongue Width (In.) 0.31
Tongue Width (mm) 7.87
Product Type Ring Terminal on Reel
For Use With Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
