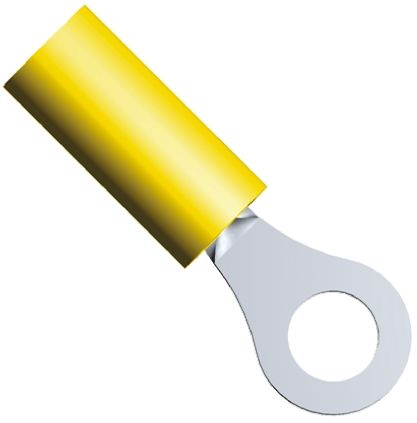

TE Connectivity PIDG Series Insulated Crimp Ring Terminal, M2.5 (#4) Stud Size, 0.1mm² to 0.26mm² Wire Size, Yellow [52189]; 161-4834
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | PIDG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Inner Ring Diameter | 3.02mm |
| Outer Ring Diameter | 5.16mm |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.26mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 24AWG |
| Stud Size | M2.5 (#4) |
| Colour | Yellow |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.74mm |
| Overall Length | 18.69mm |
