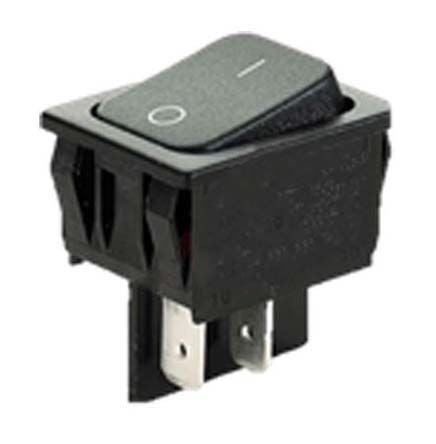

Marquardt Single Pole Single Throw (SPST), Momentary Rocker Switch Panel Mount [1941.1103]; 907-7080
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 19.4mm |
| Panel Cut Out Height | 12.9mm |
| Contact Current Rating | 0.25 |
| Illuminated | No |
| Actuator Colour | Orange |
| Mounting Type | Panel Mount |
| IP Rating | IP50 |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +100 (Terminal Side) °C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -20 → +100 (Terminal Side) °C, -20 → +55 (Actuating Side) °C |
| Panel Cut Out Size | 19.4 x 12.9mm |
| Contact Resistance | <100mΩ |
| Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
| Legend Text Colour | Black |
| Contact Material | Silver |
| AC Voltage Rating | 250V |
| Case Material | Glass Fibre Reinforced Polyamide, Polyamide |
