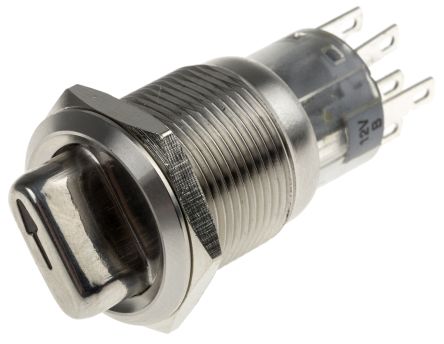

RS PRO, 2 Position on-on Rotary Switch, 5 A @ 250 V ac, Quick Connect, Solder; 877-1983
Mã kho: 8771983
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | On-on |
| Contact Current Rating | 5 A @ 250 V ac |
| Number of Switch Positions | 2 |
| Voltage Rating | 12V |
| Depth | 39mm |
| Diameter | 22mm |
| Dimensions | 22 (Dia.) x 39mm |
| Mounting Type | Front Panel |
| Mounting Hole Size | 19.2 mm |
| Terminal Type | Quick Connect, Solder |
| Standards Met | CE, RoHS Compliant, UL |
| Actuator Colour | Blue |
| IP Rating | IP67 |
| Contact Material | Silver |
| Mechanical Life | 50000Cycles |
| Angle of Throw | 90° |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Illuminated | Yes |
| Case Material | Stainless Steel |
