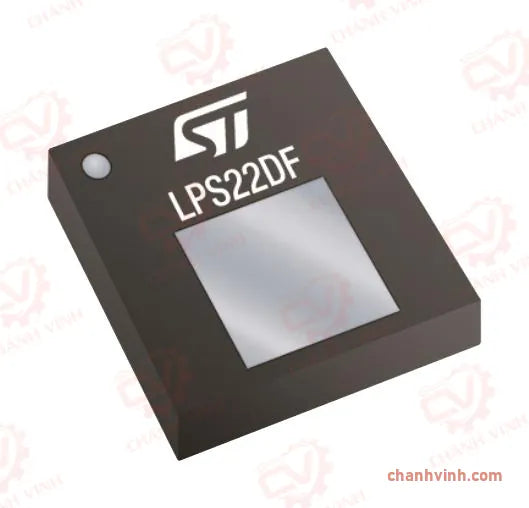

STMicroelectronics Absolute Pressure Sensor, 126kPa Operating Max, Surface Mount, 10-Pin, 2000kPa Overload Max, HLGA-10L [LPS22DFTR]; 234-8881

The STMicroelectronics LPS22DF is an ultra-compact piezo resistive absolute pressure sensor which functions as a digital output barometer. The LPS22DF provides lower power consumption, achieving lower pressure noise than its predecessor.

260 to 1260 hPa absolute pressure range

Current consumption down to 1.7 μA

Absolute pressure accuracy 0.5 hPa

Low pressure sensor noise 0.34 Pa

High-performance TCO 0.45 Pa/°C

Embedded temperature compensation

24-bit pressure data output

ODR from 1 Hz to 200 Hz

SPI, I²C or MIPI I3CSM interfaces

Supports 1.08 V digital interface

Embedded FIFO

Interrupt functions data-Ready, FIFO flags, pressure thresholds

Supply voltage 1.7 to 3.6 V

High shock survivability 22,000 g

Small and thin package
