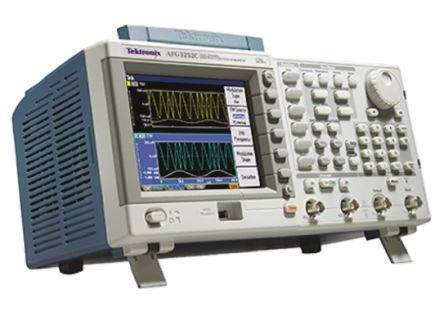

Tektronix AFG3051C Arbitrary Waveform Generator 50MHz [AFG3051C]; 774-2975
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 50MHz |
| Minimum Frequency | 1 μHz |
| Maximum Frequency Triangle Ramps | 800kHz |
| Minimum Frequency Triangle Ramps | 1µHz |
| Maximum Sampling Frequency | 1Gsps |
| Resolution | 12 Digit |
| Pulse Resolution | 4Digit |
| Maximum Pulse Width | 999.99s |
| Minimum Pulse Width | 12ns |
| Arbitrary Waveforms | Yes |
| Rise - Fall Time | 10ns |
| Display Type | 5.6 in TFT |
| Maximum Operating Temperature | +50°C |
| Width | 168mm |
| Length | 329.6mm |
| Inputs | Modulation In, Reference In, Trig In |
| Connector Type | BNC |
| Waveform Memory per Channel | 128k points |
| Weight | 4.5kg |
| Dimensions | 329.6 x 168 x 156.3mm |
| Model Number p | AFG3051C |
| Height | 156.3mm |
| Minimum Operating Temperature | 0°C |
| Interface Type | GPIB, LAN, USB |
| Data Entry | Keyboard |
| Sweep | Linear, Logarithmic |
| Maximum Storage | 4 |
| Maximum Output Amplitude | 10V Pk-Pk |
