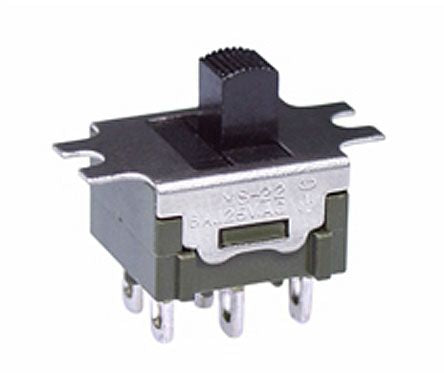

Panel Mount Slide Switch Double Pole Double Throw (DPDT) Latching 3 A @ 250 V ac, 6 A @ 125 V ac Top [MS22AFW01]; 125-1856
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | Panel Mount |
| Switch Operation | Latching |
| Contact Current Rating | 3 A @ 250 V ac, 6 A @ 125 V ac |
| Terminal Type | Solder Lug |
| Actuator Type | Top |
| Dimensions | 19.6 x 11.4 x 11.5mm |
| Contact Resistance | 10mΩ |
| Actuator Material | Glass Fibre Reinforced PBT Resin |
| Contact Material | Silver Alloy |
| Operating Temperature Range | -30 → +85°C |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Voltage Rating | 125 V ac, 250 V ac |
