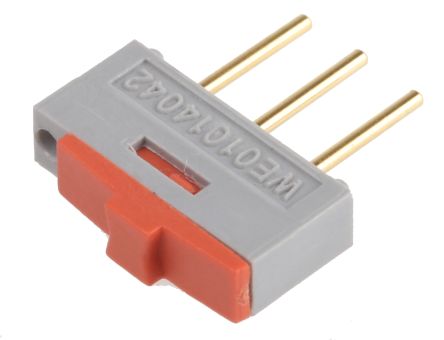

Through Hole Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA@ 42 V dc Slide [450301014042]; 785-6469
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | Through Hole |
| Switch Operation | Latching |
| Contact Current Rating | 100 mA@ 42 V dc |
| Terminal Type | Solder Lug |
| Actuator Type | Slide |
| Length | 8.42mm |
| Width | 2.5mm |
| Depth | 6.4mm |
| Dimensions | 2.5 x 8.42mm |
| Contact Resistance | 30mΩ |
| Mechanical Life | 2000Cycles |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Actuator Material | Polyamide |
| Maximum Operating Temperature | +85°C |
| Voltage Rating | 12V dc |
