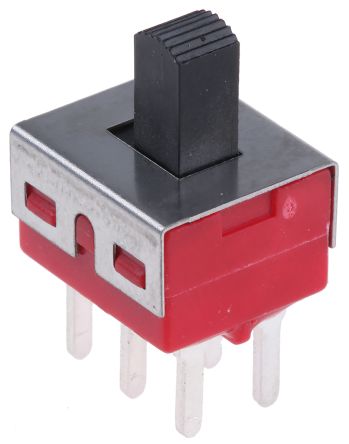

PCB Slide Switch Double Pole Double Throw (DPDT) Latching 5 A @ 28 V dc Top; 734-7270
Mã kho: 7347270
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 5 A @ 28 V dc |
| Terminal Type | Through Hole |
| Actuator Type | Top |
| Length | 11.43mm |
| Width | 7.62mm |
| Depth | 12.7mm |
| Dimensions | 11.43 x 7.62 x 12.7mm |
| Contact Resistance | 10mΩ |
| Mechanical Life | 30000Cycles |
| Actuator Material | Nylon |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Plated Brass |
| Voltage Rating | 28V dc |
