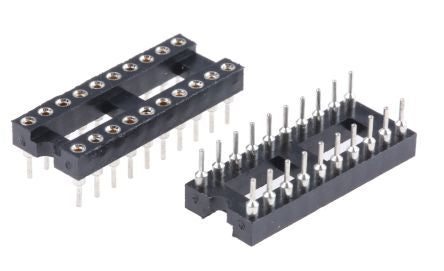

ASSMANN WSW 2.54mm Pitch Vertical 20 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A [AR 20 HZL-TT]; 674-2482
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 20 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Tin |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 25.4mm |
| Width | 10.16mm |
| Depth | 3mm |
| Dimensions | 25.4 x 10.16 x 3mm |
| Voltage Rating | 100 V ac |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | PBT |
