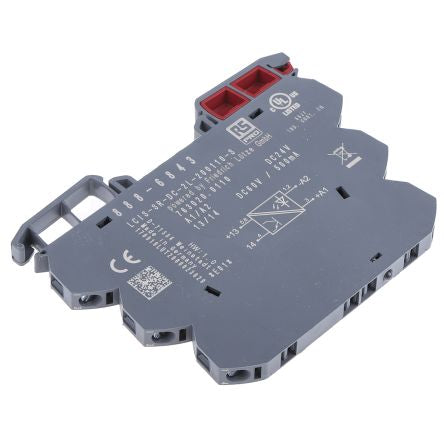

RS PRO 0.5 A SPNO Solid State Relay, DC, DIN Rail, MOSFET, 60 V Maximum Load; 888-6843
Mã kho: 8886843
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 1 mA |
| Maximum Load Current | 0.5 A |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 10 V |
| Maximum Load Voltage | 60 V |
| Minimum Control Voltage | 11 V |
| Maximum Control Voltage | 30 V |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Dimensions | 6.2 x 73 x 93mm |
| Off State Leakage Current | <10 μA |
| Load Voltage Range | 11 → 60V |
| Operating Temperature Range | -25 → +60°C |
| Length | 6.2mm |
| Depth | 73mm |
| Control Voltage Range | 11 → 30 V |
| Standards Met | CSA, GL, UL |
| Special Features | Green LED Indicator, Varistor |
| Height | 93mm |
