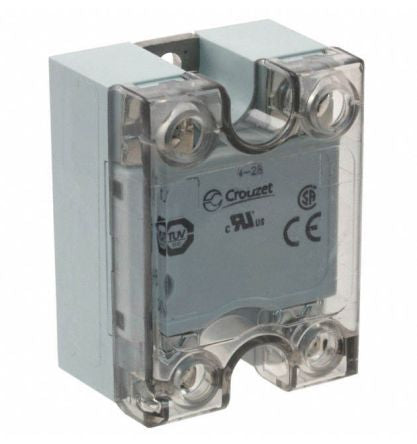

Sensata / Crydom 10 A Solid State Relay, Zero Cross, Panel Mount, 280 V ac Maximum Load [84137001-RSC1]; 171-8292
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 500 mA |
| Maximum Load Current | 0.416666666666667 |
| Mounting Type | Panel Mount |
| Series | GN |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 90 V ac |
| Maximum Control Voltage | 280 V ac |
| Switching Type | Zero Cross |
| Terminal Type | Screw |
| Maximum Turn On Time | 20 ms |
| Dimensions | 58.8 x 44.5 x 30.9mm |
| Control Voltage Range | 90 → 280 V ac |
| Operating Temperature Range | -40 → +80°C |
| Length | 58.8mm |
| Off State Leakage Current | 0.1 mA |
| Maximum Operating Temperature | +80°C |
| Capacitance | 8pF |
| Height | 30.9mm |
| Minimum Operating Temperature | -40°C |
| Relay Type | AC |
| Load Voltage Range | 24 → 280V ac |
| Special Features | Current Rating 10 and 125 Amps, LED Input Status Indicator, Output Voltage 24-280 VAC and 48-660 VAC |
| Depth | 44.5mm |
| Standards Met | CE, EN 60950-1, UL |
