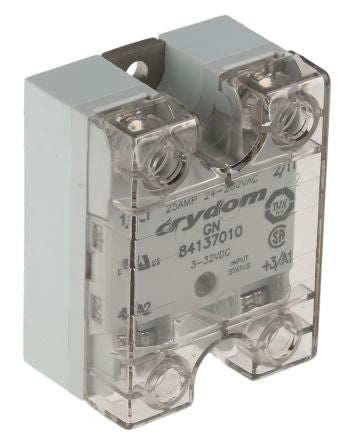

Sensata / Crydom 25 Arms Solid State Relay, Zero Crossing, Panel Mount, SCR, 280 V ac Maximum Load [84137010]; 145-0536
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 50 mArms |
| Range | Easy Pick |
| Maximum Load Current | 25 A rms |
| Mounting Type | Panel Mount |
| Series | 8413 |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 1/2 cycles |
| Dimensions | 44.5 x 57.3 x 30.9mm |
| Standards Met | CE, CSA LR 38595, CULus Recognised E79183, EMC Compliant, EN 60950-1, EN 62314:2006, IEC, IEC 61000-4-2, IEC 61000-4-4, TUV, UL |
| Special Features | Improved SEMS Screw & Washer, IP20, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers |
| Off State Leakage Current | 0.1 mArms |
| Relay Type | Solid State Relay |
| Load Voltage Range | 24 → 280V ac |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Control Voltage Range | 3 → 32 V dc |
| Number of Poles | 1 |
| Height | 30.9mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 44.5mm |
| Depth | 57.3mm |
| Capacitance | 8pF |
