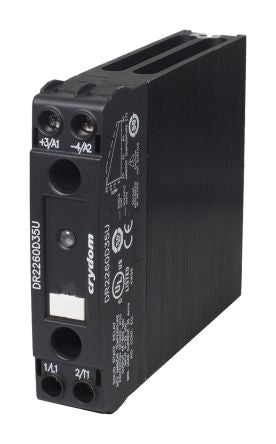

Sensata / Crydom 20 A SP Solid State Relay, Zero Cross, DIN Rail, MOSFET, 600 V rms Maximum Load [DR2260D20U]; 910-7311
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 5 mA |
| Maximum Load Current | 20 A |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 48 V rms |
| Maximum Load Voltage | 600 V rms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Contact Configuration | SP |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Maximum Turn On Time | 20 ms |
| Dimensions | 22.5 x 116.5 x 93.2mm |
| Height | 93.2mm |
| Standards Met | CE, CULus, CUS, IEC, ISO |
| Special Features | IP20 Touch Safe Housing, LED Input Status Indicator, 1 kHz PWM Frequency |
| Capacitance | 8pF |
| Depth | 116.5mm |
| Control Voltage Range | 4 → 32 V dc |
| Operating Temperature Range | -40 → +80°C |
| Load Voltage Range | 48 → 600Vrms |
| Off State Leakage Current | 0.1 mA |
| Relay Type | Nove 22 Solid State Relay |
| Length | 22.5mm |
| Number of Poles | 1 |
