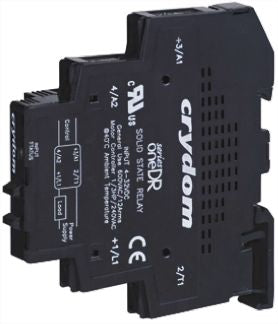

Sensata / Crydom 12 A rms Solid State Relay, Instantaneous, DIN Rail, 280 V rms Maximum Load [DR24D12R]; 720-4105
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A rms |
| Maximum Load Current | 12 A rms |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Instantaneous |
| Terminal Type | Screw |
| Maximum Turn On Time | 0.1 ms |
| Dimensions | 83.7 x 18 x 90.3mm |
| Depth | 18mm |
| Load Voltage Range | 24 → 280Vrms |
| Operating Temperature Range | -30 → +80°C |
| Control Voltage Range | 4 → 32 V dc |
| Maximum Operating Temperature | +80°C |
| Height | 90.3mm |
| Off State Leakage Current | 0.1 mA rms |
| Length | 83.7mm |
| Minimum Operating Temperature | -30°C |
