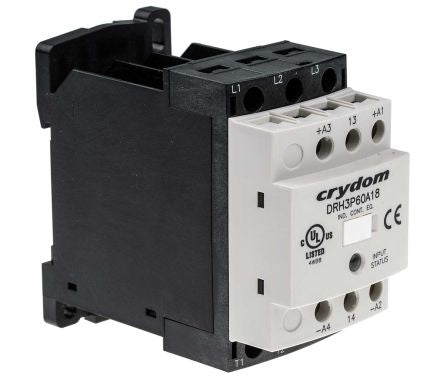

Sensata / Crydom 18 Arms Solid State Relay, Zero Crossing, DIN Rail, 600 V ac Maximum Load [DRH3P60A18]; 145-0582
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 18 A rms |
| Mounting Type | DIN Rail |
| Series | DRH |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 600 V ac |
| Minimum Control Voltage | 90 V ac/dc |
| Maximum Control Voltage | 280 V ac/dc |
| Switching Type | Zero Crossing |
| Terminal Type | Screw |
| Maximum Turn On Time | 30 ms |
| Dimensions | 45.3 x 95.6 x 86.7mm |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -10 → +70°C |
| Load Voltage Range | 48 → 600V ac |
| Minimum Operating Temperature | -10°C |
| Height | 86.7mm |
| Standards Met | CCCs, CE, CSA C22.2 No. 14, CULus Listed E116949, EMC Compliant, EN/IEC 60947-4-2, IEC, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, UL |
| Off State Leakage Current | 3 mArms |
| Relay Type | Solid State Relay |
| Number of Poles | 3 |
| Special Features | AC or DC Control, Alarm Output in Case of Over-Temperature, Built-In Overvoltage Protection, Fan Controlled Through Thermistor & Microprocessor to Optimize Fan Operation, Horsepower Rated, Integrated Over-Temperature Protection, Multicolor LED with Input Status & Alarm Indicator |
| Length | 45.3mm |
| Depth | 95.6mm |
| Control Voltage Range | 90 → 280 V ac/dc |
| Capacitance | 20pF |
