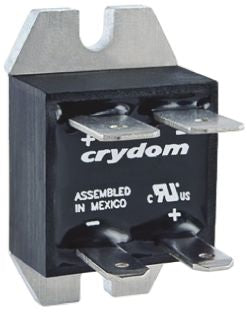

Sensata / Crydom 5 A SPST Solid State Relay, DC, Panel Mount, MOSFET, 100 V dc Maximum Load [EL100D5-24]; 740-6632
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 0.208333333333333 |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 3 V dc |
| Maximum Load Voltage | 100 V dc |
| Minimum Control Voltage | 21 V dc |
| Maximum Control Voltage | 27 V dc |
| Switching Type | DC |
| Contact Configuration | SPST |
| Terminal Type | Quick Connect |
| Output Device | MOSFET |
| Maximum Turn On Time | 1 ms |
| Dimensions | 35.6 x 21.1 x 14.3mm |
| Load Voltage Range | 3 → 100V dc |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -30 → +80°C |
| Length | 35.6mm |
| Off State Leakage Current | 100 μA dc |
| Control Voltage Range | 21 → 27 V dc |
| Minimum Operating Temperature | -30°C |
| Depth | 21.1mm |
| Height | 14.3mm |
