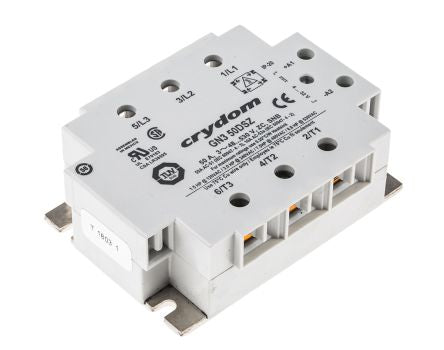

Sensata / Crydom 50 Arms Solid State Relay 3 Phase, Zero Voltage Turn-On, Panel Mount, Triac, 600 V ac Maximum Load [GN350DSZ]; 170-7341
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA rms |
| Maximum Load Current | 50 A rms |
| Mounting Type | Panel Mount |
| Series | GN3 |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 600 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Voltage Turn-On |
| Terminal Type | Screw |
| Output Device | TRIAC |
| Maximum Turn On Time | 1/2 ms |
| Dimensions | 101.3 x 36.83 x 79.7mm |
| Minimum Operating Temperature | -40°C |
| Height | 79.7mm |
| Capacitance | 8pF |
| Off State Leakage Current | 0.06 mArms |
| Length | 101.3mm |
| Operating Temperature Range | -40 → +80°C |
| Maximum Operating Temperature | +80°C |
| Depth | 36.83mm |
| Load Voltage Range | 48 → 600V ac |
| Control Voltage Range | 4 → 32 V dc |
| Special Features | LED Input Status Indicator, Transient Protection Built-In |
| Relay Type | Solid State Relay |
