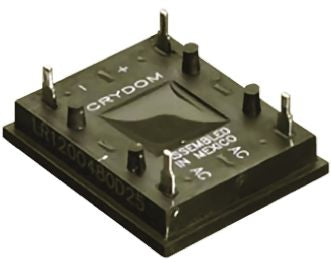

Sensata / Crydom 40 A Solid State Relay, Zero Cross, PCB Mount, SCR, 530 V rms Maximum Load [LR1200480D40]; 738-5585
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A rms |
| Maximum Load Current | 40 A |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 48 V rms |
| Maximum Load Voltage | 530 V rms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Terminal Type | Through Hole |
| Output Device | SCR |
| Package Style | DIP |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 35 x 28.4 x 6.3mm |
| Control Voltage Range | 4 → 32 V dc |
| Load Voltage Range | 48 → 530Vrms |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +80°C |
| Off State Leakage Current | 0.1 mA rms |
| Length | 35mm |
| Depth | 28.4mm |
| Height | 6.3mm |
