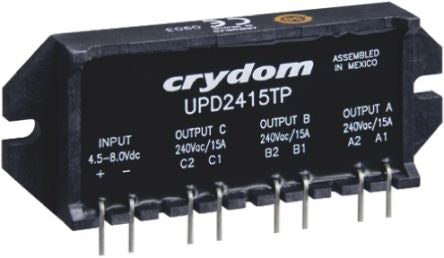

Sensata / Crydom 15 A rms Solid State Relay, Instantaneous, PCB Mount, SCR, 280 V rms Maximum Load [UPD2415TP-10]; 712-6001
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA rms |
| Maximum Load Current | 15 A rms |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 4.5 V dc |
| Maximum Control Voltage | 8 V dc |
| Switching Type | Instantaneous |
| Terminal Type | Through Hole |
| Output Device | SCR |
| Package Style | SIP |
| Maximum Turn On Time | 0.02 ms |
| Dimensions | 3.086 x 0.5 x 1.125in |
| Depth | 0.5in |
| Minimum Operating Temperature | -40°C |
| Control Voltage Range | 4.5 → 8 V dc |
| Load Voltage Range | 24 → 280Vrms |
| Maximum Operating Temperature | +80°C |
| Height | 1.125in |
| Off State Leakage Current | 10 mA rms |
| Length | 3.086in |
| Operating Temperature Range | -40 → +80°C |
