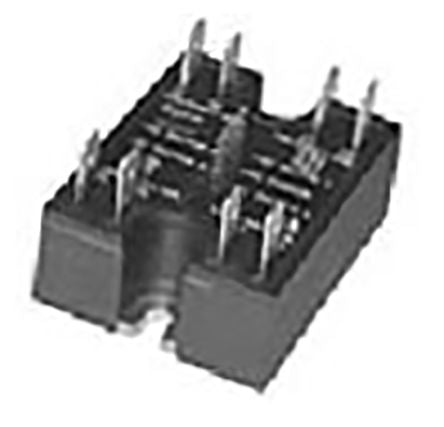

TE Connectivity 20 A 4 x SPNO Solid State Relay, Zero, Chassis Mount, Triac, 280 V rms Maximum Load [SSRQ-240D20]; 863-3718
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A |
| Maximum Load Current | 20 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 15 V dc |
| Switching Type | Zero |
| Contact Configuration | 4 x SPNO |
| Terminal Type | Quick Connect |
| Output Device | TRIAC |
| Package Style | Hockey Puck |
| Maximum Turn On Time | 8.3 ms |
| Dimensions | 44.45 x 58.4 x 21.6mm |
| Control Voltage Range | 4 → 15 V dc |
| Load Voltage Range | 24 → 280Vrms |
| Depth | 58.4mm |
| Operating Temperature Range | -40 to + 80°C |
| Length | 44.45mm |
| Off State Leakage Current | 10 mA rms |
| Height | 21.6mm |
