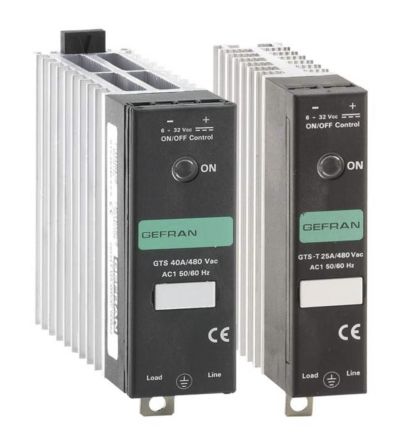

Solid state relays 120A - 480V - Input [GTS-120/48-D-0-VEN90 (480V/120A)]; 183-3574
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 120 A |
| Mounting Type | DIN Rail |
| Series | GTS |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 530 V ac |
| Minimum Control Voltage | 6 V dc |
| Maximum Control Voltage | 32 V dc |
| Terminal Type | Screw |
| Output Device | Alarm |
| Dimensions | 127 x 142 x 122mm |
| Control Voltage Range | 6 → 32 V dc |
| Maximum Operating Temperature | +80°C |
| Length | 127mm |
| Depth | 142mm |
| Relay Type | Solid State Relay |
| Off State Leakage Current | <3 mA |
| Special Features | Control Input From VDC/VAC Logic Signal, Fastening to DIN Bar (Standard), Fastening to Panel (Optional), LED Power On Indicator, MOV Protections (Varistor), Option Alarm Output for Interrupted Load, Switching at Voltage Zero Crossing |
| Standards Met | CE |
| Minimum Operating Temperature | 0°C |
| Height | 122mm |
| Load Voltage Range | 24 → 530V ac |
| Operating Temperature Range | 0 → +80°C |
