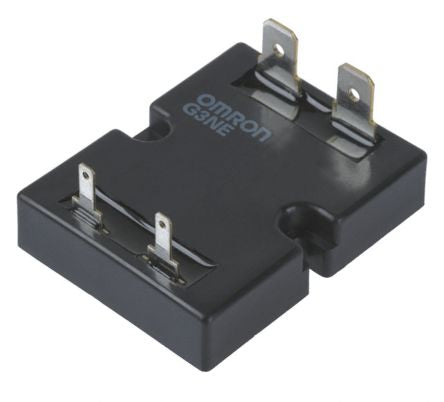

Omron 20 (With Heatsink) A, 5 (Without Heatsink) A SPNO Solid State Relay, Zero Crossing, Panel Mount, Phototriac [G3NE-220T-US DC24]; 828-6842
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 A |
| Maximum Load Current | 5 (Without Heatsink) A, 20 (With Heatsink) A |
| Series | G3NE |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 75 V ac |
| Maximum Load Voltage | 264 V ac |
| Minimum Control Voltage | 19.2 V dc |
| Maximum Control Voltage | 28.8 V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SPNO |
| Terminal Type | Quick Connect |
| Output Device | Phototriac |
| Maximum Turn On Time | 1 (+1/2 cycle) ms |
| Dimensions | 47.5 x 37.5 x 11.5mm |
| Off State Leakage Current | 5 mA |
| Length | 47.5mm |
| Operating Temperature Range | -30 → +80°C |
| Maximum Operating Temperature | +80°C |
| Control Voltage Range | 19.2 → 28.8 V dc |
| Load Voltage Range | 75 → 264V ac |
| Depth | 37.5mm |
| Height | 11.5mm |
