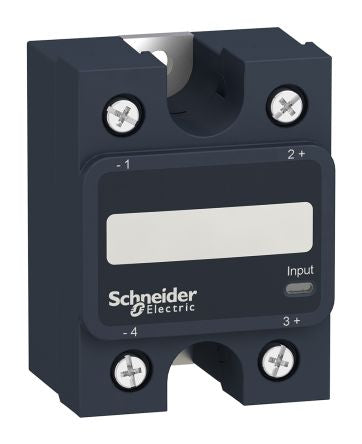

Schneider Electric 12 A SPNO Solid State Relay, DC, Panel Mount, MOSFET, 150 V dc Maximum Load [SSP1D412BD]; 904-5765
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0 |
| Maximum Load Current | 0 |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 1 V dc |
| Maximum Load Voltage | 150 V dc |
| Minimum Control Voltage | 3.5 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Maximum Turn On Time | 0.1 ms |
| Dimensions | 44.45 x 34.29 x 58.89mm |
| Off State Leakage Current | <= 0.3 mA |
| Length | 44.45mm |
| Operating Temperature Range | -40 → +80°C |
| Special Features | Green LED for Input Visualization |
| Standards Met | CE, CSA, EAC, EN/IEC, REACH, UL |
| Relay Type | Solid State Relay |
| Control Voltage Range | 3.5 → 32 V dc |
| Load Voltage Range | 1 → 150V dc |
| Depth | 34.29mm |
| Number of Poles | 1 |
| Capacitance | 50pF |
| Height | 58.89mm |
