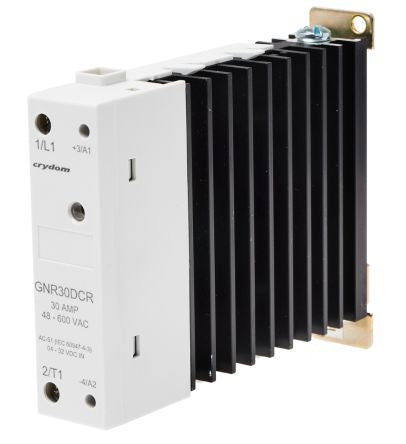

Sensata / Crydom 30 Arms Solid State Relay, Instantaneous Turn-On, DIN Rail, Triac, 32 V dc Maximum Load [GNR30DCR]; 170-7347
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA rms |
| Maximum Load Current | 30 A rms |
| Mounting Type | DIN Rail |
| Series | GNR 22.5 |
| Minimum Load Voltage | 4 V dc |
| Maximum Load Voltage | 32 V dc |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Instantaneous Turn-On |
| Terminal Type | Screw |
| Output Device | TRIAC |
| Maximum Turn On Time | 1/2 ms |
| Dimensions | 22.5 x 120.8 x 97.8mm |
| Length | 22.5mm |
| Relay Type | Solid State Relay |
| Standards Met | CE, CSA, UL |
| Special Features | Direct Bond Copper (DBC) Substrate, LED Input Status Indicator |
| Depth | 120.8mm |
| Load Voltage Range | 4 → 32V dc |
| Control Voltage Range | 4 → 32 V dc |
| Operating Temperature Range | -20 → +80°C |
| Off State Leakage Current | 0.1 mArms |
| Maximum Operating Temperature | +80°C |
| Capacitance | 8pF |
| Height | 97.8mm |
| Minimum Operating Temperature | -20°C |
