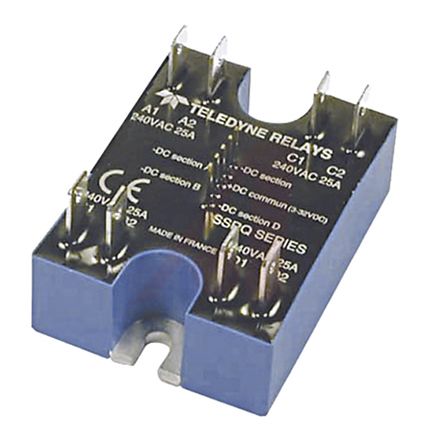

Teledyne 25 A rms Solid State Relay, DC, Panel Mount, Quad, 280 V rms Maximum Load [SQ24D25]; 886-4764
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.005 A rms |
| Maximum Load Current | 25 A rms |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 12 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | DC |
| Terminal Type | Faston |
| Output Device | Quad |
| Maximum Turn On Time | 8.3 ms |
| Dimensions | 58 x 44.5 x 19.6mm |
| Off State Leakage Current | 0.5 mA |
| Control Voltage Range | 3 → 32 V dc |
| Relay Type | Solid State Relay |
| Special Features | Constant Current Input for Low Current Draw, Tight Zero-Cross Window for Low EMI |
| Height | 19.6mm |
| Length | 58mm |
| Operating Temperature Range | -40 → +100°C |
| Load Voltage Range | 12 → 280Vrms |
| Depth | 44.5mm |
