Panduit EQSP14D-Q

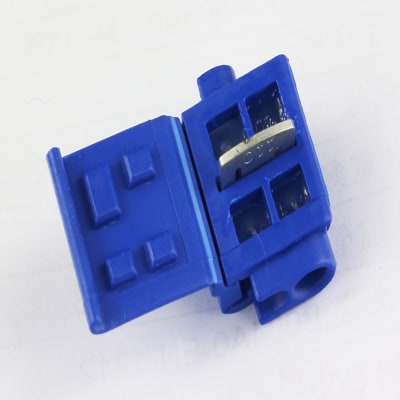

Panduit StrongHold™ Quick Splice, 18 - 14 AWG (0.75-2.5mm2) [EQSP14D-Q]; PAL054

Mã kho: PAL054
Mã nhà sản xuất: EQSP14D-Q
Tên nhà sản xuất: Panduit
10.950₫ - 10.950₫
10.950₫
10.950₫ - 10.950₫
10.950₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Contractor Products / Terminals / Splices: Panduit EQSP14D-Q

MÔ TẢ SẢN PHẨM

StrongHold™ Quick Splice, 18 - 14 AWG (0.75-2.5mm2)

_THÔNG SỐ KỸ THUẬT:

Product Type Quick Splice
Maximum Copper Conductor Size (AWG SOL) #14
Maximum Copper Conductor Size (AWG STR) #14
Maximum Copper Conductor Size (AWG) #14
Minimum Copper Conductor Size (AWG SOL) #18
Minimum Copper Conductor Size (AWG STR) #18
Minimum Copper Conductor Size (AWG) #18
Maximum Aluminum Conductor Size (AWG) NA
Minimum Aluminum Conductor Size (AWG) NA
Maximum Metric Conductor Size (mm²) 2.5
Minimum Metric Conductor Size (mm²) 0.8
Sub Brand StrongHold™
Copper Conductor Size (AWG) #18 - #14
Class G Copper Flex Conductor Size (AWG) NA
Class H Copper Flex Conductor Size (AWG) NA
Class I Copper Flex Conductor Size (AWG) NA
Class K Copper Flex Conductor Size (AWG) NA
Class M Copper Flex Conductor Size (AWG) NA
Aluminum Conductor Size (AWG) NA
Barrel Type NA
Maximum Voltage (V) 600
Maximum Voltage (kV) 0.6
Base Material Brass
Insulation Material Polypropylene
Standards Met NA
Finish/Coating Tin-Plated
Color Code Blue
Overall Length (In.) 0.77
Overall Length (mm) 19.6
Overall Width (In.) 0.47
Overall Width (mm) 11.9
Overall Height (In.) 0.48
Overall Height (mm) 12.2
CSA Temperature Rating (°C) 105
CSA Temperature Rating (°F) 221
