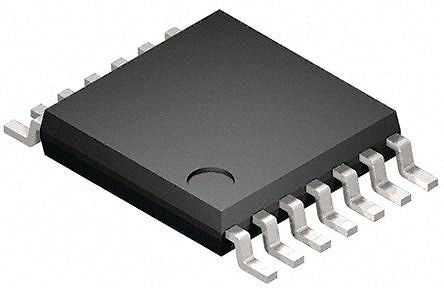

STMicroelectronics M74HC132YTTR, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin TSSOP [M74HC132YTTR]; 168-8789
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | Yes |
| Package Type | TSSOP |
| Pin Count | 14 |
| Logic Family | HC |
| Input Type | Schmitt Trigger |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 160 ns @ 50 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | -5.2mA |
| Dimensions | 5.1 x 4.48 x 1.05mm |
| Length | 5.1mm |
| Propagation Delay Test Condition | 50pF |
| Output Type | Single Ended |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 1.05mm |
| Width | 4.48mm |
