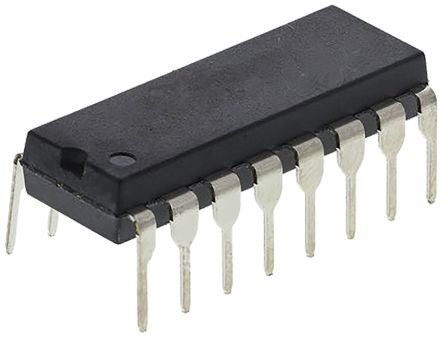

Texas Instruments SN74LS109AN Dual JK Type Flip Flop IC, 16-Pin PDIP [SN74LS109AN]; 178-9088
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LS |
| Logic Function | JK Type |
| Output Signal Type | Differential |
| Triggering Type | Positive Edge |
| Polarity | Inverting, Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Set/Reset | Yes |
| Number of Elements per Chip | 2 |
| Maximum Propagation Delay Time @ Maximum CL | 40 ns @ 15 pF |
| Dimensions | 19.69 x 6.6 x 4.57mm |
| Length | 19.69mm |
| Propagation Delay Test Condition | 15pF |
| Maximum Operating Temperature | +70 °C |
| Height | 4.57mm |
| Minimum Operating Temperature | 0 °C |
| Minimum Operating Supply Voltage | 4.75 V |
| Width | 6.6mm |
| Maximum Operating Supply Voltage | 5.25 V |
